Pneumatic Rubber Fender Of Various Sizes Can Be Customized
Pneumatic rubber fender, yokohama pneumatic fender features:
1, large energy absorption, small reaction force, so as to ensure that neither damage the hull nor damage the shore wall.
2, simple installation, portable, in any ship, any sea area is not affected by the tide and the size of the ship.
3. Good resilience, the product will not be deformed due to the force after the force is exerted. After the fender is squeezed, more than 95% of the product will be released immediately after the force.
4, good economic performance, pneumatic fender compared with the same period, Beierte fender economic performance is good, cost-effective, reliable quality. Beierte Fender has undergone inspection from raw material purchasing, product ordering, product production and product inspection to ensure its quality.
Common dimensions and properties of yokohama rubber fender
| SIZE | Initial pressure is 80 kPa Compression deformation 60% |
| Diameter(mm) | Length (mm) | Reactionforce-kn | Energyabsorb kn-m |
| 500 | 1000 | 87 | 9 |
| 600 | 1000 | 100 | 10 |
| 700 | 1500 | 182 | 28 |
| 1000 | 1500 | 241 | 40 |
| 1000 | 2000 | 340 | 54 |
| 1200 | 2000 | 392 | 69 |
| 1350 | 2500 | 563 | 100 |
| 1500 | 3000 | 763 | 174 |
| 1700 | 3000 | 842 | 192 |
| 2000 | 3500 | 1152 | 334 |
| 2000 | 4000 | 1591 | 386 |
| 2500 | 4000 | 1817 | 700 |
| 2500 | 5500 | 2655 | 882 |
| 3000 | 5000 | 2715 | 1080 |
| 3000 | 6000 | 3107 | 1311 |
| 3300 | 4500 | 2478 | 1642 |
| 3300 | 6000 | 3654 | 2340 |
| 3300 | 6500 | 3963 | 2534 |
Pneumatic rubber fender, yokohama fender mainly using compressed air as medium, can float on the sea, to absorb the impact energy of the vessel, the two ship or ship wharf building dock, such as dock between smooth, safe, in order to achieve crash-proof collision avoidance effect, which is widely used in ship to ship transfers between dock in assignments, etc.
Ship pneumatic fender structure diagram, compression deformation test

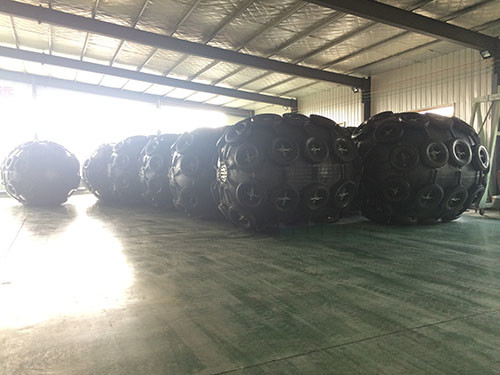

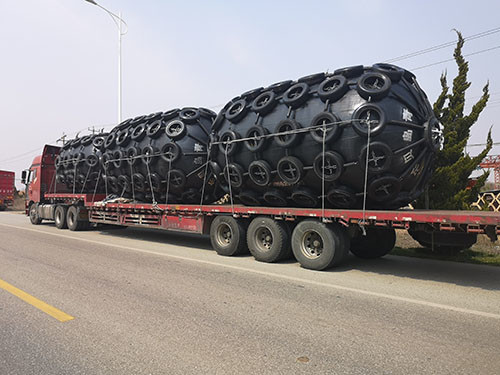

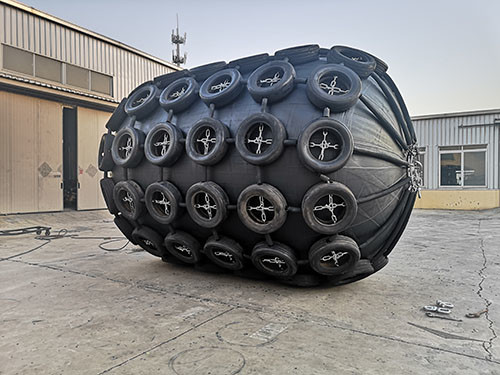

Display of pneumatic ship fender products
Service tenet:
Integrity management, quality first; Create a world famous brand, do a hundred years of enterprise;
Rigorous and pragmatic, considerate; Serve every user attentively.
After-sales service:
1. All products of the company are produced in strict accordance with ISO17357:2014 standards.
2, the company's products in normal use, the life of 8-10 years.
3, the company will carry out strict inspection on each product before leaving the factory, to ensure that all products without any quality problems before leaving the factory, so that every user can rest assured with.
4, the company's product quality warranty period of 2 years, quality problems occurred during the warranty period free repair or replacement.
5. Responsible for guiding repair and maintenance process, and long-term supply of repair materials and tools.
6. Instruct or participate in the implementation and application of products to various projects.
7. Provide pre-sale, in-sale and after-sale services.
